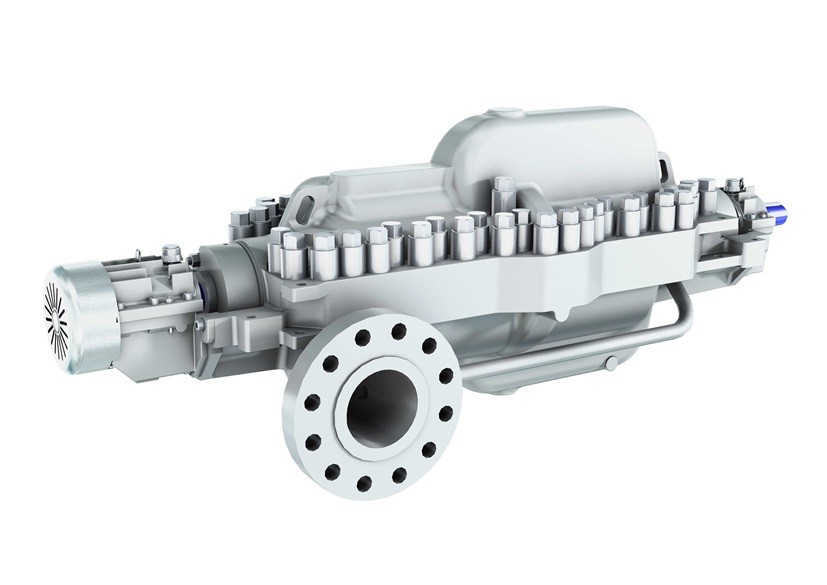

The MSD pump delivers the widest hydraulic performance envelope among commercially‑available BB3 multistage centrifugal pumps. More than 10,000 MSD units have been deployed worldwide for product pipelines, boiler‑feed duties, water‑injection operations and nuclear safety‑related applicationsSulzer.
Technical Data
- Temperature range
- Temperatures: Up to 205°C / 400°F
- Pressure rating
- Pressures: Up to 300 bar / 4,400 psi
Specifications
- Capacities
- Up to 3,200 m3/h / 14,000 US gpm
- Heads
- Up to 2,900 m / 9,500 ft
- Discharge sizes
- 150 to 350 mm / 3 to 14 inches
- Maximum speed of rotation
- Up to 6,000 rpm
