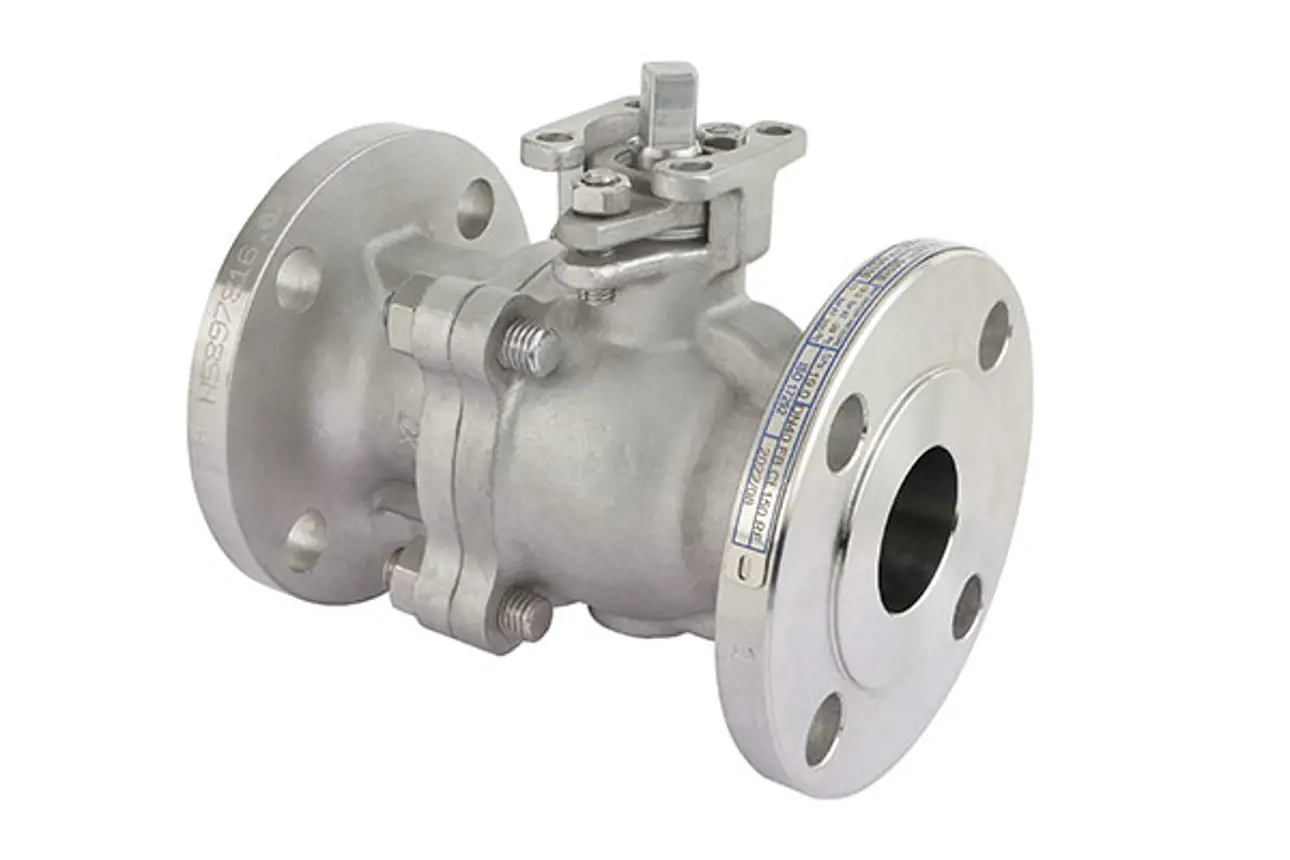

Neles Easyflow J7 reduced bore flanged floating ball valves are an economical alternative to our full-specification valve products. Built with rugged two-piece body construction, the J7 series guarantees long service life and consistent dependable performance.
Specifications
- Nominal diameter
- DN15 – DN200 (NPS 1/2 –8)
- Pressure rating
- Class 150 and Class 300
- Flange accommodation
- ASME B16.5
- Face-to-face length
- ASME B16.10
- Vacuum rating
- 29.91 inch Hg gauge (759.98 mm Hg gauge or 2x10-2 Torr or 4x10-4 psia or 99.99% vacuum)
- Leakage
- No visible leakage
- Standards followed
- ISO 17292, ASME B16.34, API 598, BS EN 12266
- Safety level
- SIL-3 capable
- Testing
- API 598
