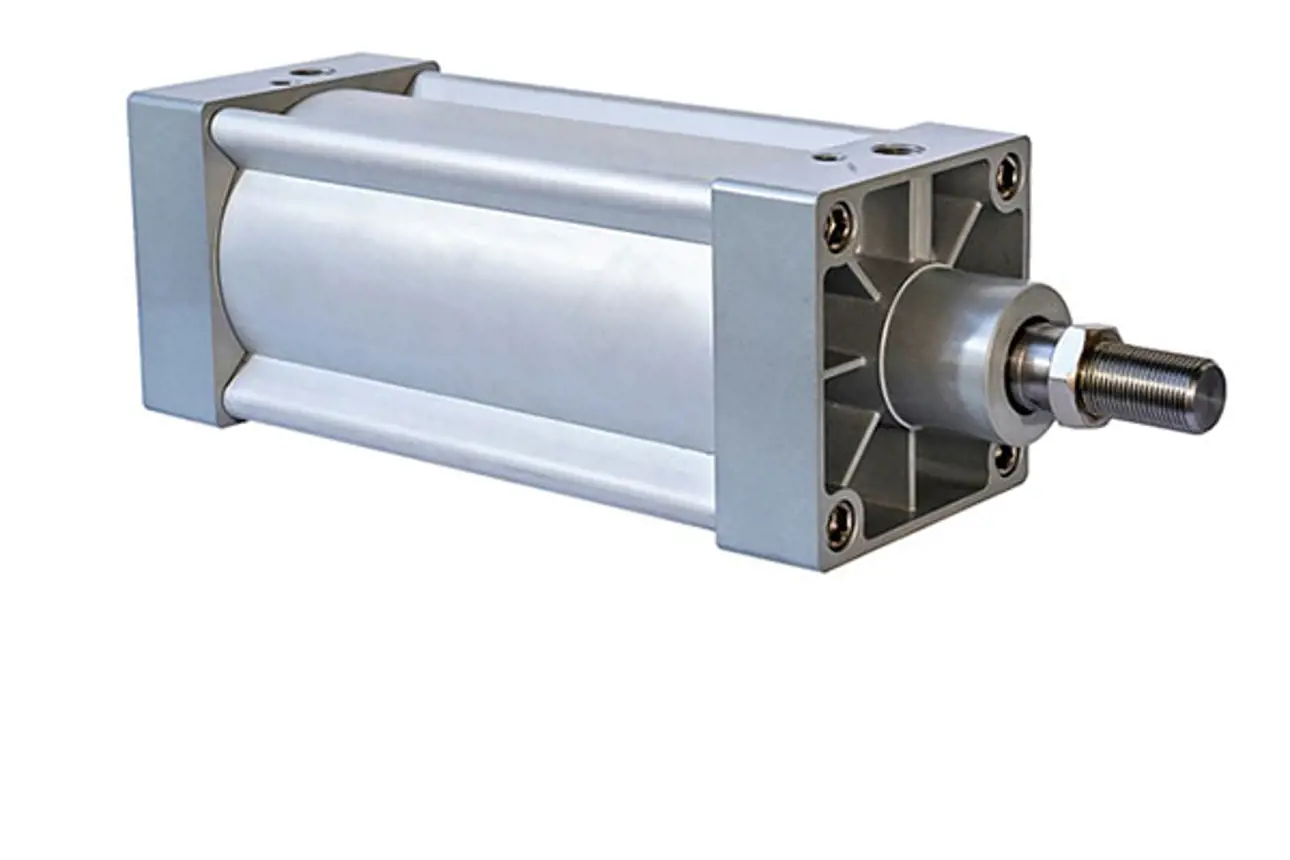

The Neles Easyflow SN piston-barrel linear actuator delivers long cycle life and robust build, conforming to ISO 15552 and VDMA 24562, plus a wide range of unique features and options. Specially built for fast operation of gate valves, globe valves, dampers and other linear-style valves.
Specifications
- Series
- Pneumatic piston-barrel type linear actuator
- Version
- Double acting (For spring return version consult Neles)
- Max. operating pressure
- 10 bar
- Force range
- 1147N to 20107N
- Temperature range
- -20 to +80 °C (For high & low temp. version, consult Neles)
- Protection class
- IP 67
- Mounting interface
- ISO 15552 VDMA 24562
