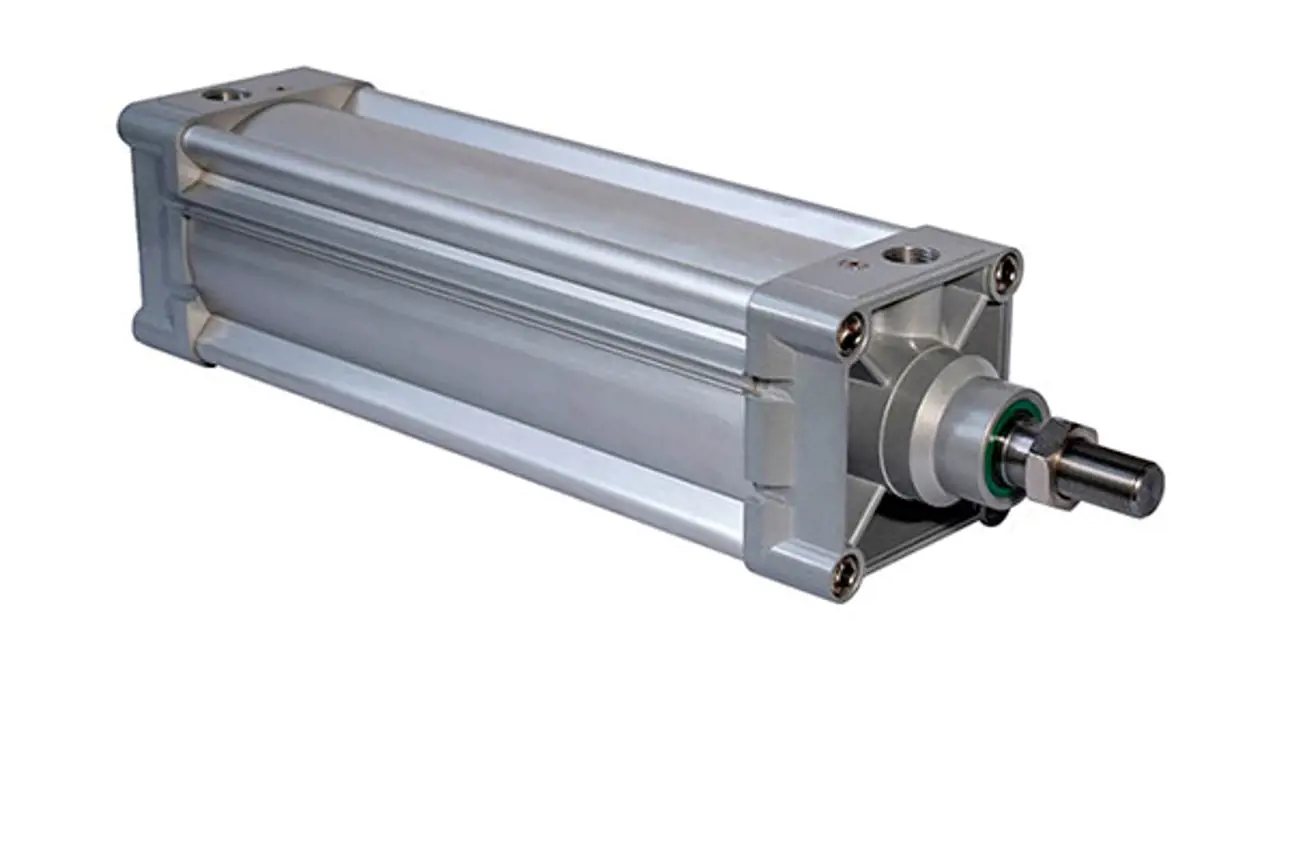

The Neles Easyflow SC piston-barrel linear actuator boasts long cycle life and rugged build, conforming to ISO 15552 and VDMA 24562. It comes with a full suite of unique features and options, specially built for fast operation of gate valves, globe valves, dampers and other linear-style valves.
Specifications
- Series
- Pneumatic piston-barrel type linear actuator
- Version
- Double acting (For spring return version consult Neles)
- Max. operating pressure
- 10 bar
- Force range
- 69N to 7850 N
- Temperature range
- -20 to +80 °C (For high & low temp. version, consult Neles)
- Protection class
- IP 67
- Mounting interface
- ISO 15552 VDMA 24562
- Certificate
- SIL 3 capable
