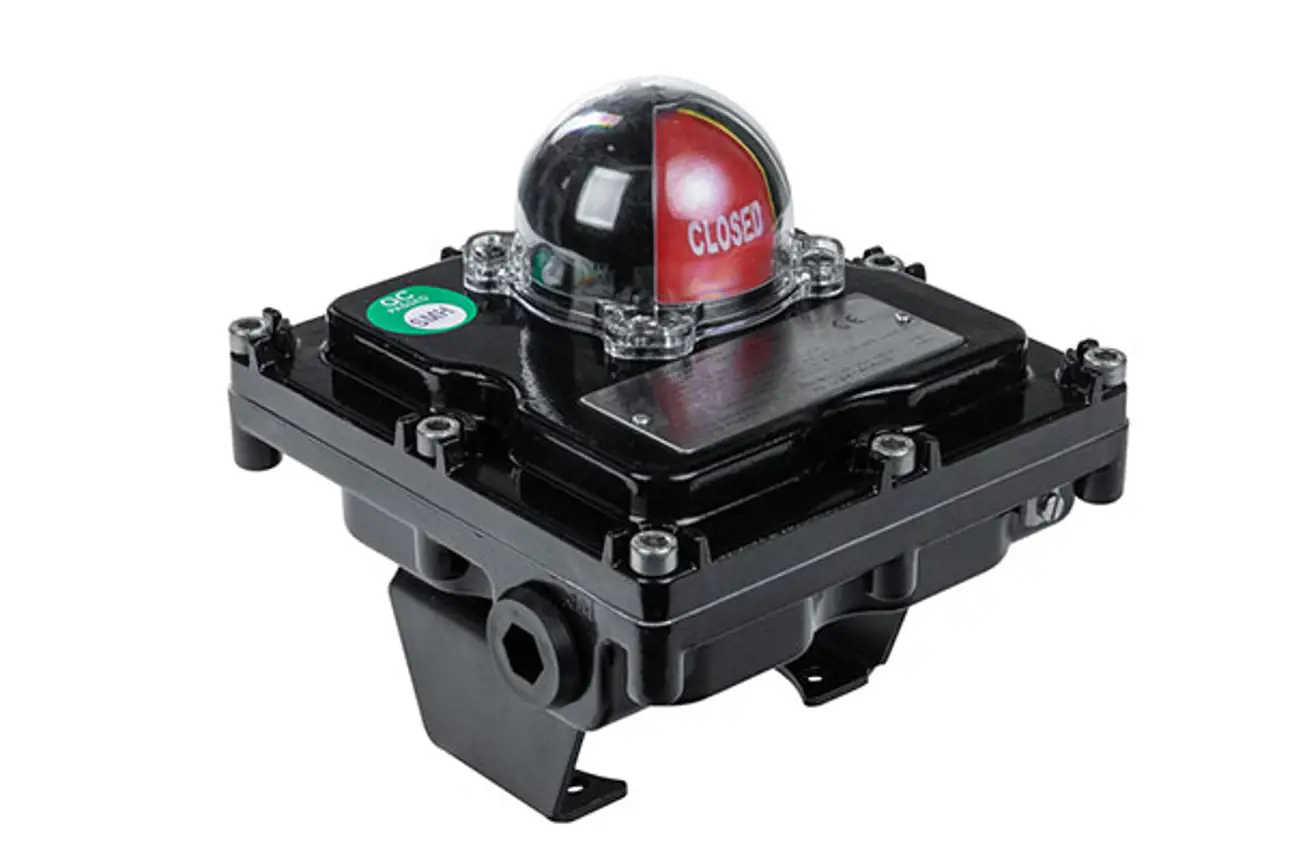

Neles Easyflow K-series versatile limit switches are engineered for quarter-turn actuators and valve packages. These switches supply reliable end-limit signals for rotary stroke. Actuator rotation drives the internal shaft to actuate preconfigured cams, activating inductive or mechanical switch components to link with external monitoring systems. Offered in select regions.
Specifications
- Product series
- KS = standard housing;KC = compact housing
- Housing material
- Epoxy powder coated diecast aluminum (LM6);Stainless steel (CF8M, equivalent to AISI316);Polycarbonate (Lexan) (only for KC-series)
- Cable entries
- 2 pcs for KS;3 pcs for KC
- Cable entry options
- M20x1,5;½”NPT
- Temperature ranges
- -40 °C to +100 °C
- Hazardous area approvals
- ATEX and CCOE
- Ingress protection class
- IP67
