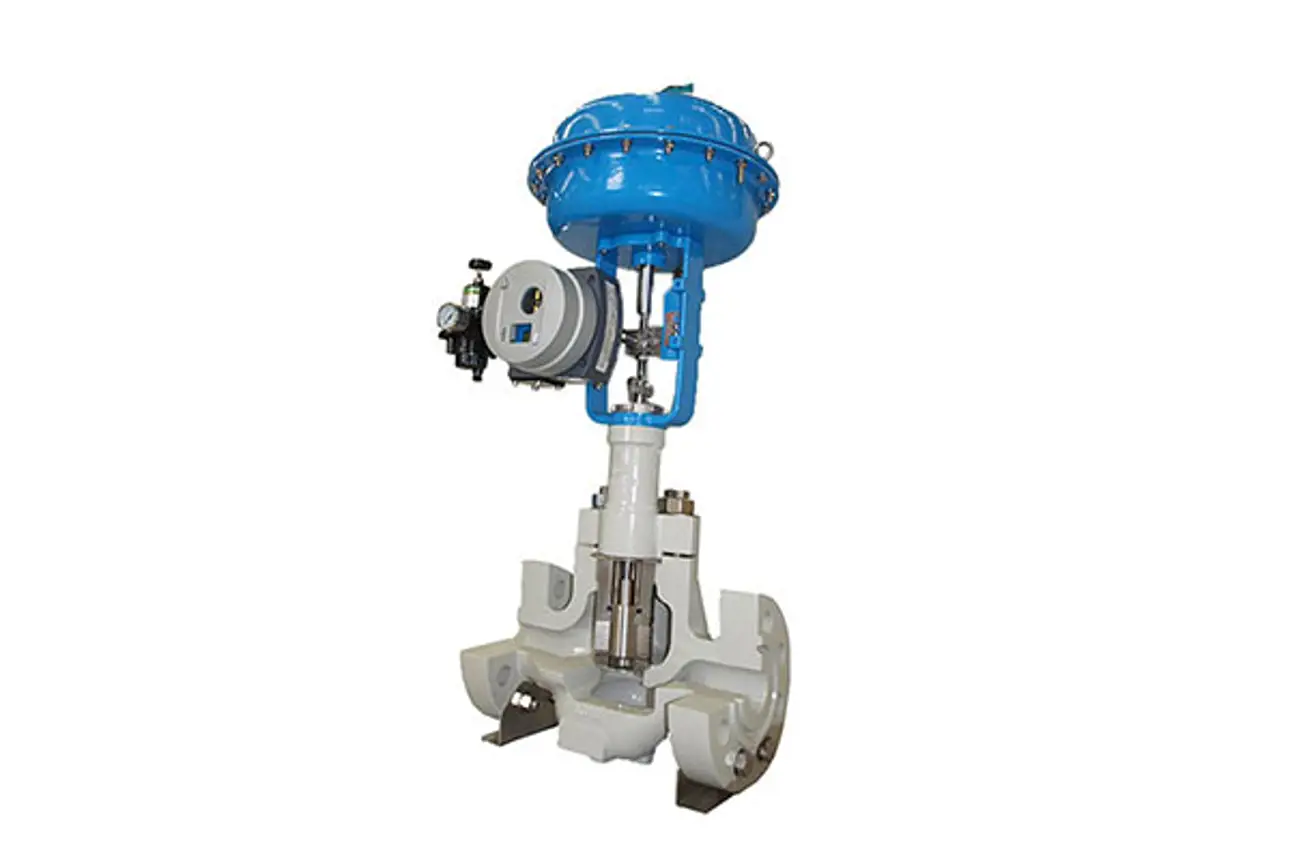

Neles GM series globe valves offer superior control performance and high reliability for demanding applications requiring noise and cavitation elimination. Standard units are fitted with Neles diaphragm or piston actuators and valve controllers for precise flow control, extended service life and on‑line performance monitoring.
Specifications
- Series
- GM
- Design
- Unbalanced, top-guided / balanced, cage-guided
- Size range
- DN 25 - 900 / 1" - 36"
- Pressure classes
- ASME 150 – 2500 / PN10 – 320 / JIS 10K – 20K
- Temperature range
- -200 to +593 °C / -320 to +1053 °F
- Tightness
- ANSI/FCI 70-2 class IV / V (metal seat), V (soft seat, balanced), VI (soft seat, unbalanced)
