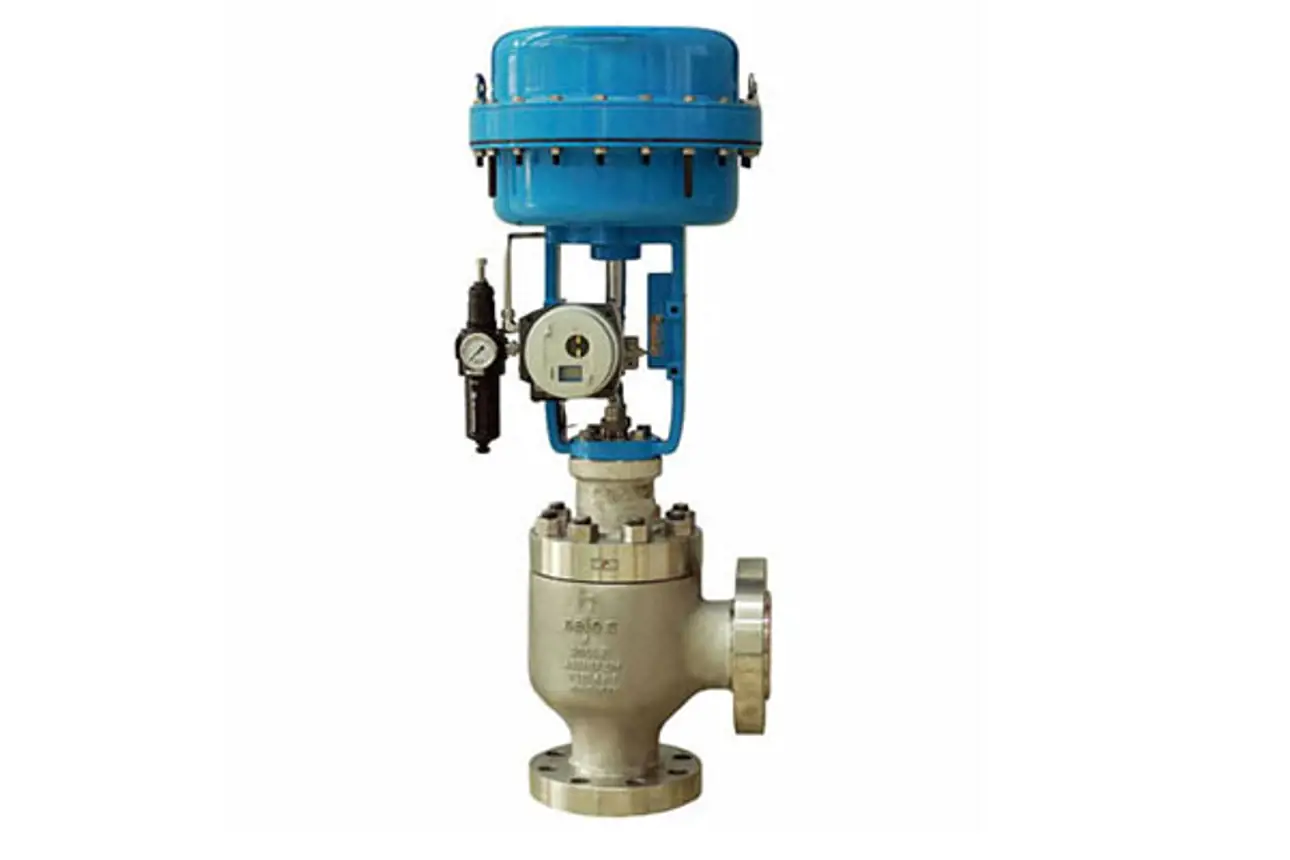

Neles AU series angle globe valves deliver superior control performance and high reliability for high pressure drop and high velocity applications. Angle valves are widely adopted for flashing service or piping layouts with limited space. Standard units are fitted with Neles diaphragm actuators and valve controllers to enable precise flow control, extended service life and on-line performance monitoring.
Specifications
- Series
- AU
- Design
- Unbalanced, top-guided
- Size range
- DN 15 - 150 / 1/2" - 6"
- Pressure classes
- ASME 150 – 2500 / PN10 – 320
- Temperature range
- -200 to +593 °C / -320 to +1053 °F
- Tightness
- ANSI/FCI 70-2 class IV / V (metal seat) and VI (soft seat)
