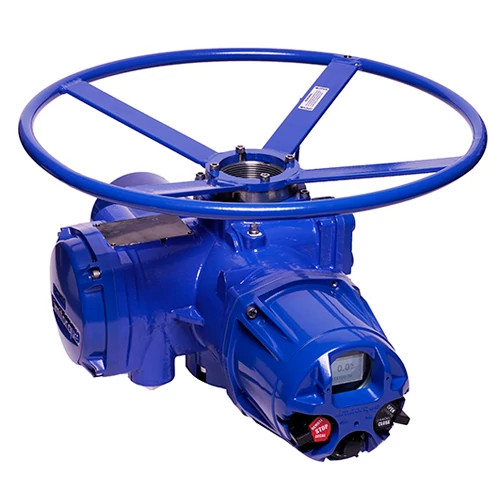

Non-Intrusive Multi-Turn Actuators – Limitorque MXb is one of the many innovative Electric Actuators Flowserve has to offer. Learn more about the specifications here.
Technical Data
- Model series
- Non-Intrusive Multi-Turn Actuators
Specifications
- Parameter
- Explosion-Proof Certifications
- Parameter
- ATEX IIB/IIC
- Parameter
- IECEX IIB/IIC
- Parameter
- FM B, C, D
- Parameter
- Design Standards
- EN15714-02 - Industrial valves; Actuators
- Part 2
- Parameter
- ISA-96.02.01-2016 - Guidelines for the Specification of Electric Valve Actuators.
- Parameter
- Meets pertinent European Directives (CE mark)
- Parameter
- Test Standards
- Parameter
- AWWA C542 - Electric Motor Actuators for Valves and Slide Gates
- Parameter
- ASTM B117 - Standard Practice for Salt Spray Tests
- Parameter
- 20 to 1,700 ft-lb output torque;
- Parameter
- Additional torque can be supported with addition of gearboxes.
- Temperature
- -30°C to 70°C (-22°F to 158°F)
- Speed
- 15 to 200 RPM
- Parameter
- Materials
- Housing
- 356-T6 aluminum alloy
- Covers
- 380/383 aluminum alloy
Recommended Scenarios
- Power
- Conventional Steam
- Combined Cycle
- Geothermal
- Chemicals
- Basic (Organic & Inorganic)
- Specialty (Fine & Consumer)
- Biofuels
- Pharmaceutical
- Petrochemicals
- Water
