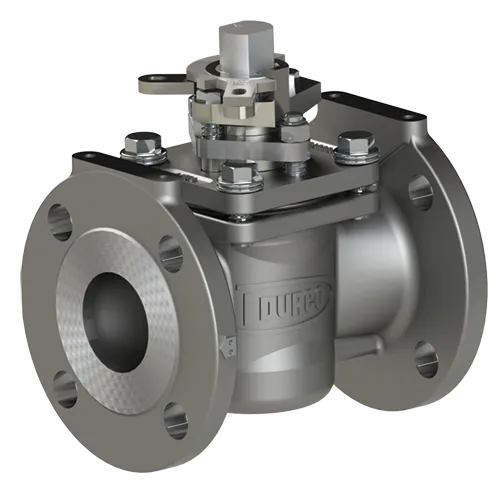

The Durco G4XZ Sleeveline plug valve is fully qualified to the 1st edition of API 641 and ISO 15848‑1‑BH‑CO3 fugitive emission standards. It delivers verified low‑emission performance to meet stringent global environmental compliance requirements for process facilities.
Technical Data
- Temperature range
- Temperatures: -50 to 600°F (-45 to 315°C) depending on alloy and sealing configuration. Fugitive emission testing is limited in temperature range to 204°C (400°F) and certain materials
- Pressure rating
- PN 110 to 260
- Body material
- Body: Monel, carbon steel, stainless steel, corrosion resistant alloy Seat/sleeve: TFE, TFM, or TMHT
Specifications
- ASME
- B16.34
- Parameter
- PED
- Parameter
- CRN
- API
- 598
- ISO
- 10497
- API
- 607 (for external leakage only)
- API
- 641 1st edition
- ISO
- 15848-1-BH-CO3
- Sizes
- NPS 1/2 to 20
