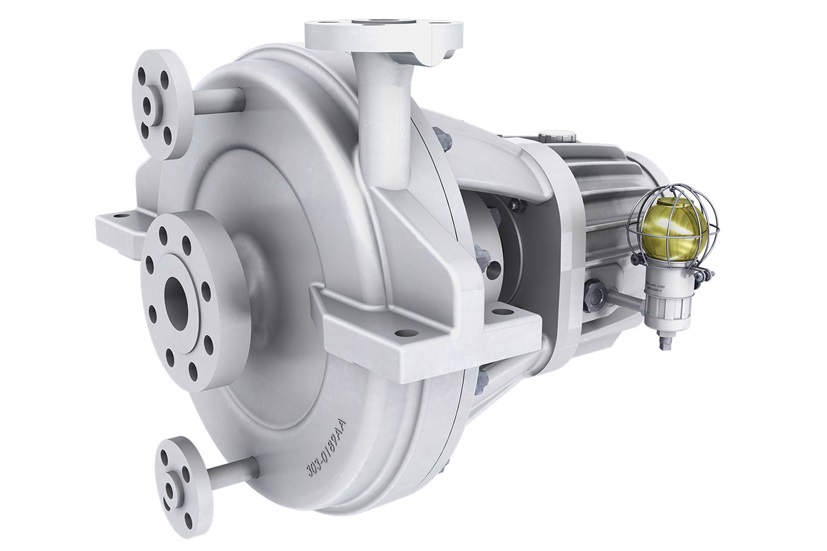

The PRELF is an API 610 (ISO 13709) Type OH2 horizontal, centerline-mounted, single-stage overhung centrifugal process pump, specially engineered for ultra-low-flow operating conditions. Its compact construction minimizes footprint while delivering high reliability and low life-cycle costs. Custom variable machining solutions enable the PRELF to resolve challenging low-flow centrifugal pumping duties across the oil, gas and petrochemical industries.
Technical Data
- Temperature range
- Temperatures: -46 to 180°C / -51 to 356°F
- Pressure rating
- Pressures: up to 40 bar / up to 580 psi
Specifications
- Capacities
- Low flow design from just 3m3/hr / 12 US gpm
- Heads
- up to 210 m. / 690 ft.
