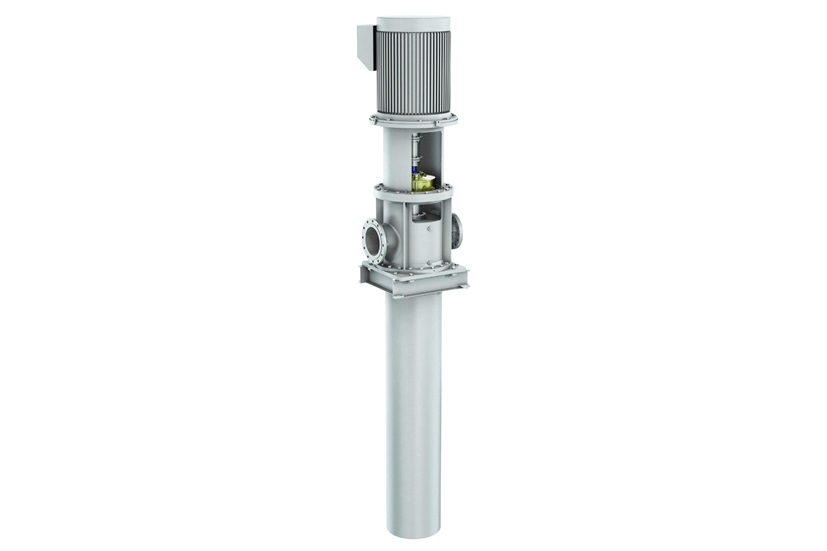

SJD‑CEP vertical can‑type condensate extraction pumps are selected for applications with limited available NPSH, caused by system constraints or fluids operating close to their vapor pressure. Typical duties include condensate extraction and heater drain service. The pump’s NPSH requirements are satisfied by adjusting pump and can length, offering the added benefit of a small footprint.
Technical Data
- Temperature range
- Temperatures :50Hz up to 100°C;60Hz up to 212°F
- Pressure rating
- Pressures: 50Hz up to 94 bar ;60Hz up to 1,360 psi
- Body material
- Pump part: Material Bowl: Cast iron, carbon steel, chrome steel Impellers: Cast Iron, chrome steel Shaft: Chrome steel Can, column, discharge head: Carbon steel
Specifications
- Bowl sizes
- 50Hz 315 to 1,484 mm ;60Hz 15.4 to 63.1 in
- Capacities
- 50Hz 210 to 4,900 m3/h;60Hz 924 to 21,560 US gpm
- Heads
- 50Hz up to 400 m ;60Hz up to 1,300 ft
