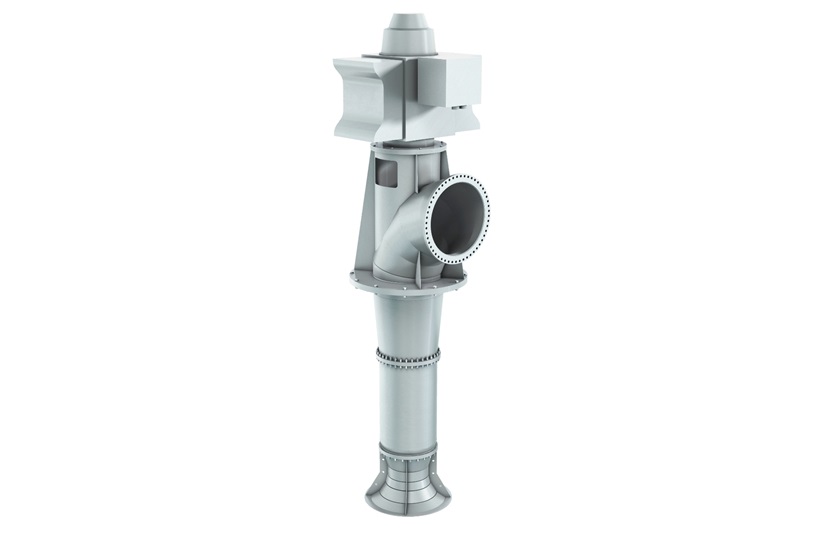

The SJT‑CWP range consists of engineer‑to‑order high‑flow vertical pumps built for industrial pumping duties and custom sump layouts. Available with semi‑open or closed‑type cast impellers, the pump series starts at an impeller diameter of 350 mm (14 in), with a specific speed nq 75 (Ns 3 870). Primarily engineered as cooling‑water pumps for thermal‑power and combined‑cycle power plants, they are also suitable for water‑treatment and other industrial sectors.
Technical Data
- Temperature range
- Temperatures: 50Hz Up to 50oC;60Hz Up to 122oF
- Pressure rating
- Pressures:50Hz Up to 8.6 bar;60Hz Up to 125 psi
- Body material
- Pump part : Material Casings: Fabricated carbon steel, austenitic steel, duplex or super duplex Impellers: Chrome steel, austenitic steel, duplex or super duplex Shaft :Chrome steel, austenitic steel, duplex or super duplex Column and discharge head :Fabricated carbon steel, austenitic steel, duplex or super duplex
Specifications
- Impeller diameter
- 50Hz Up to 1,920 mm ;60Hz Up to 76 in.
- Capacities
- 50Hz Up to 90,000 m3/h;60Hz Up to 396,000 US gpm
- Heads
- 50Hz Up to 60 m;60Hz Up to 200 ft.
