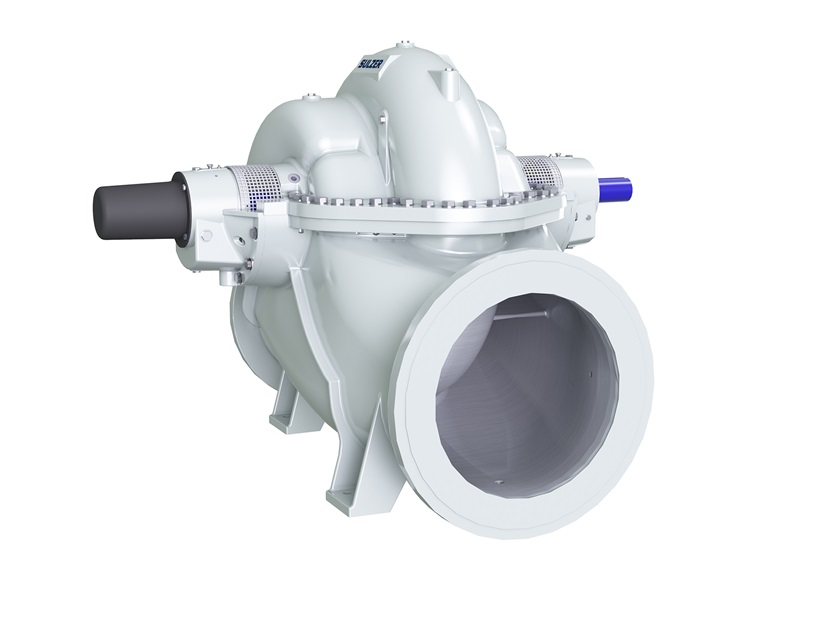

ZPP pumps are single‑stage, axially split, double‑suction centrifugal pumps engineered for high‑capacity, demanding industrial applications. They deliver superior process reliability, optimal hydraulic efficiency and minimized operational costs for continuous heavy‑duty service.
Technical Data
- Temperature range
- Temperatures: up to 120°C / 250°F
- Pressure rating
- Pressures: up to 20 bar / 290 psi
Specifications
- Capacities
- up to 25’000 m3/h / 110’000 USgpm
- Heads
- up to 160 m / 525 ft.
- Discharge sizes
- from 250 mm / 10 in to 900 mm / 35 in
- Maximum speed of rotation
- up to 3000 rpm
