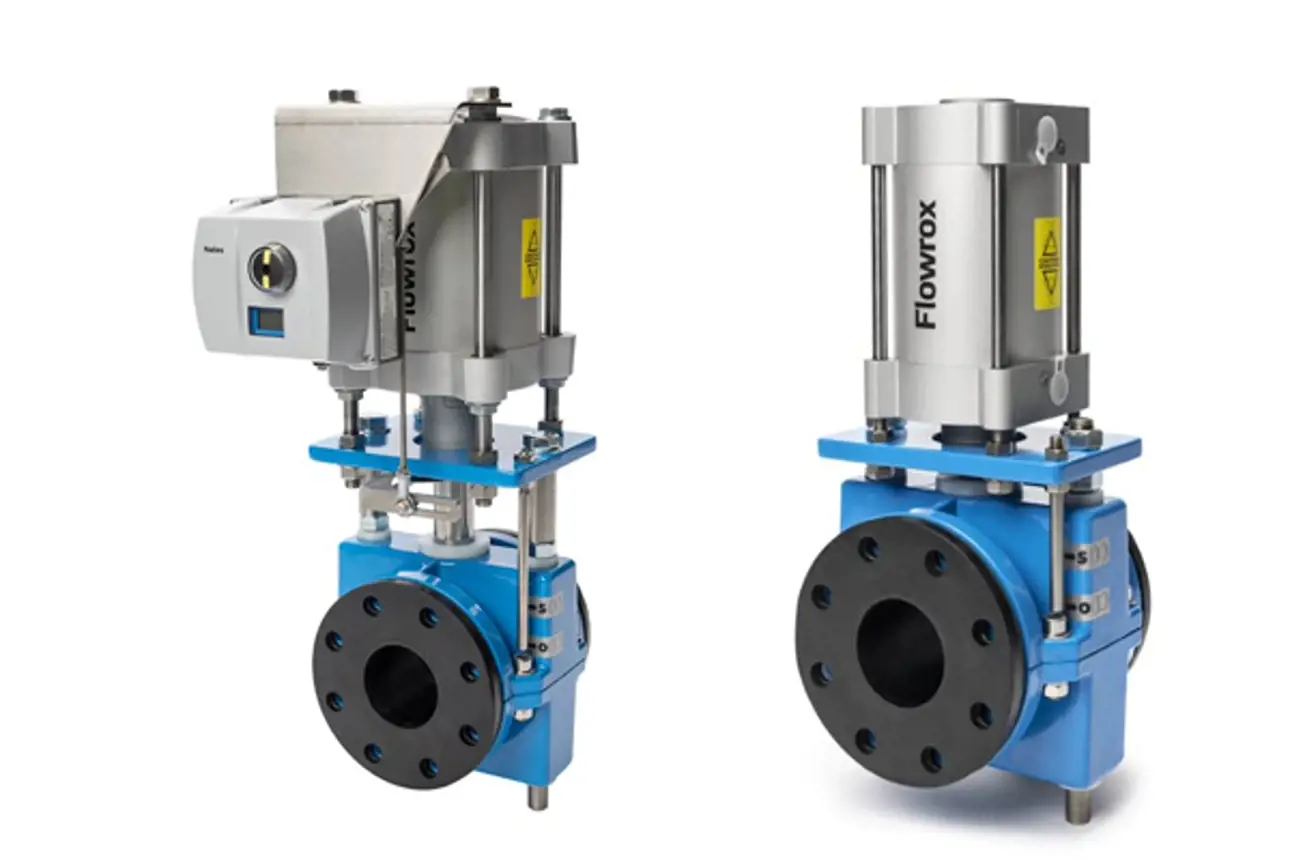

Flowrox PV, PVE and PVE/S heavy-duty pinch valves are engineered for on-off and modulating control services handling abrasive or corrosive slurries, powders and granular media. When fully open, the valve presents a full bore passage without flow obstructions. Upon closure, a pair of pinch bars compresses the valve sleeve along its centerline. It maintains bubble-tight shut-off performance even when solid deposits accumulate on the sleeve inner surface.
Specifications
- Series
- PV; PVE ;PVE/S
- Construction
- Open body;Enclosed body;Enclosed/Sealed body
- Size range
- 80 - 600 mm / 3 - 24 in; 25 - 1000 mm / 1 - 40 in ;25 - 800 mm / 1 - 32 in
- Pressure range
- 0 - 25 bar / 0 - 362 psi; 0 - 100 bar / 0 - 1450 psi; 0 - 100 bar / 0 - 1450 psi
- Temperature range
- -25 - 50 °C / -32 - 122 °F ;-25 - 80 °C / -32 - 176 °F;-25 - 80 °C / -32 - 176 °F
